INDUSTRIAL IP67 TRACKBALL
This ruggedized trackball is specially designed for harsh industrial environment applications : the self-adjusting PTFE seal of the trackerball guarantees an IP67 protection grade. This laser trackball has a large 50 mm ball, which make this unit the ideal solution for all applications where accurate pointer control is required. It features a removable top ring facilitating the cleaning of the ball and ball compartment.
Panel mount with bezel (incl. alu carrier plate, electronics and cable)
Intended for front panel mounting into users’ cabinet or panel with a minimum of required space and mounting depth. The electronic parts on the backside are protected by a metal cover.
Dimensions / weight : 90 x 165,8 x 59,7 mm / 0,6 kg
Mô tả
MECHANICAL SPECIFICATIONS
- Sealing: IP67 frontal
- Ball diameter: 50,8 mm (2″)
- Ball material: polyester
- Tracking force: nom. 50 grams
- Keys: short travel switches, tactile feel switches with 0,3 mm travel and 2,55 N operating force
- Front layer: Black polyester front layer with embossed keys, scratch and chemical resistant
- Carrier plate: black brushed anodized aluminium
- Lifetime: >=2 million ball revolutions
- Cable: shielded, straight 1,6 m long
- Operating temperature: -10°C to +60°C
- Storage temperature: -25°C to +80°C
- Switches: tactile, 0,3 mm travel
- Output: PS/2 & USB Combo
CONNECTIVITY
These combo PS/2 & USB trackball units have a 1.6 meter long shielded straight cable ended by a USB type A plug. An adaptor to PS/2 is added. No special device driver is needed, use standard available drivers of your operating system.
- Due to the increasing differences of the PS/2 mouse port specifications of the various PC manufacturers, we do recommend that this unit should be tested on the final PC configuration and operating system prior to installing it in series.
COMBINATION
The TBX50 trackball is specially designed to use in combination with the NSI standard backlit keyboard KSM103Bx.

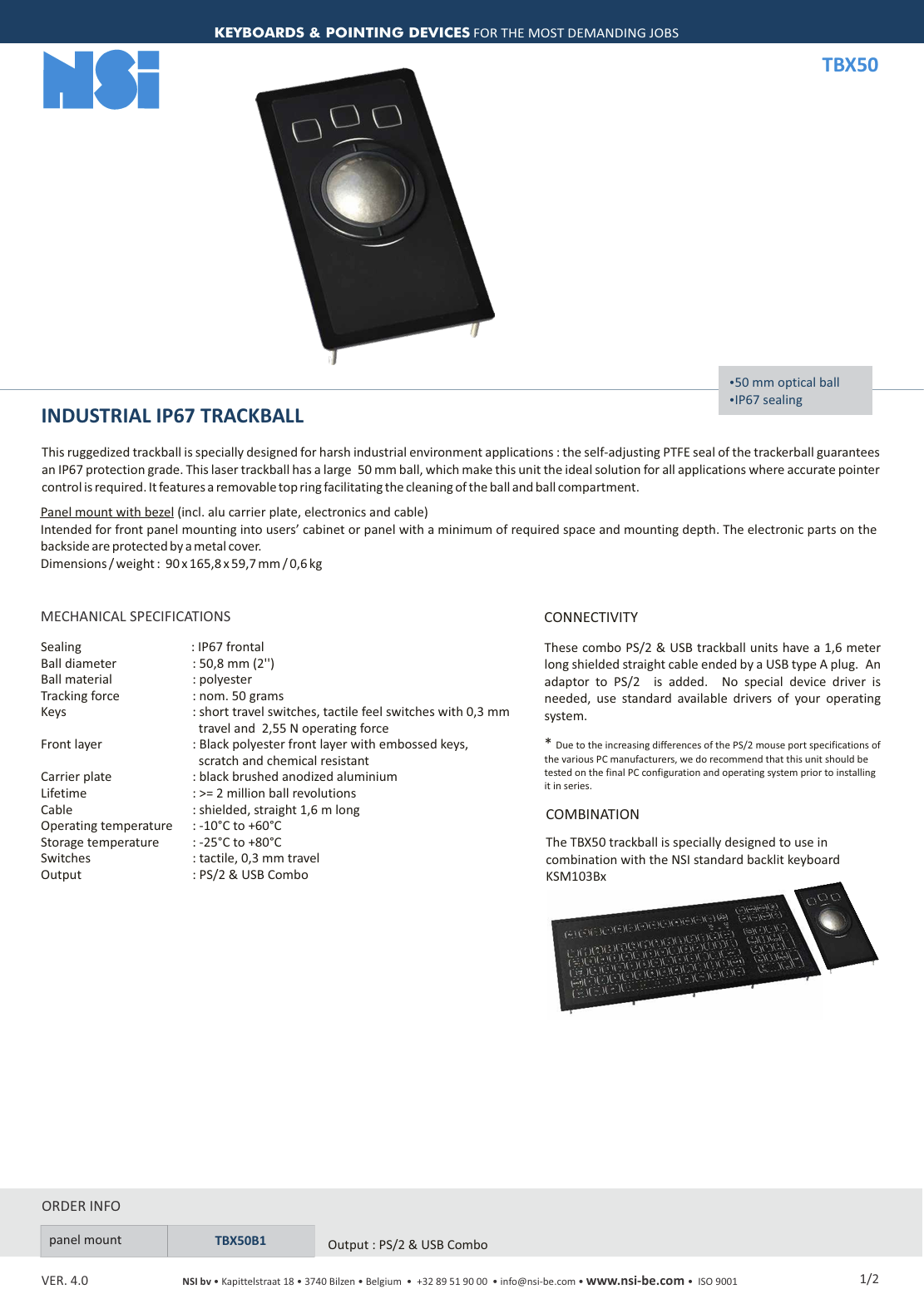

Dưới đây là chi tiết thông số kĩ thuật: tbx50-industrial-ip67-trackball
