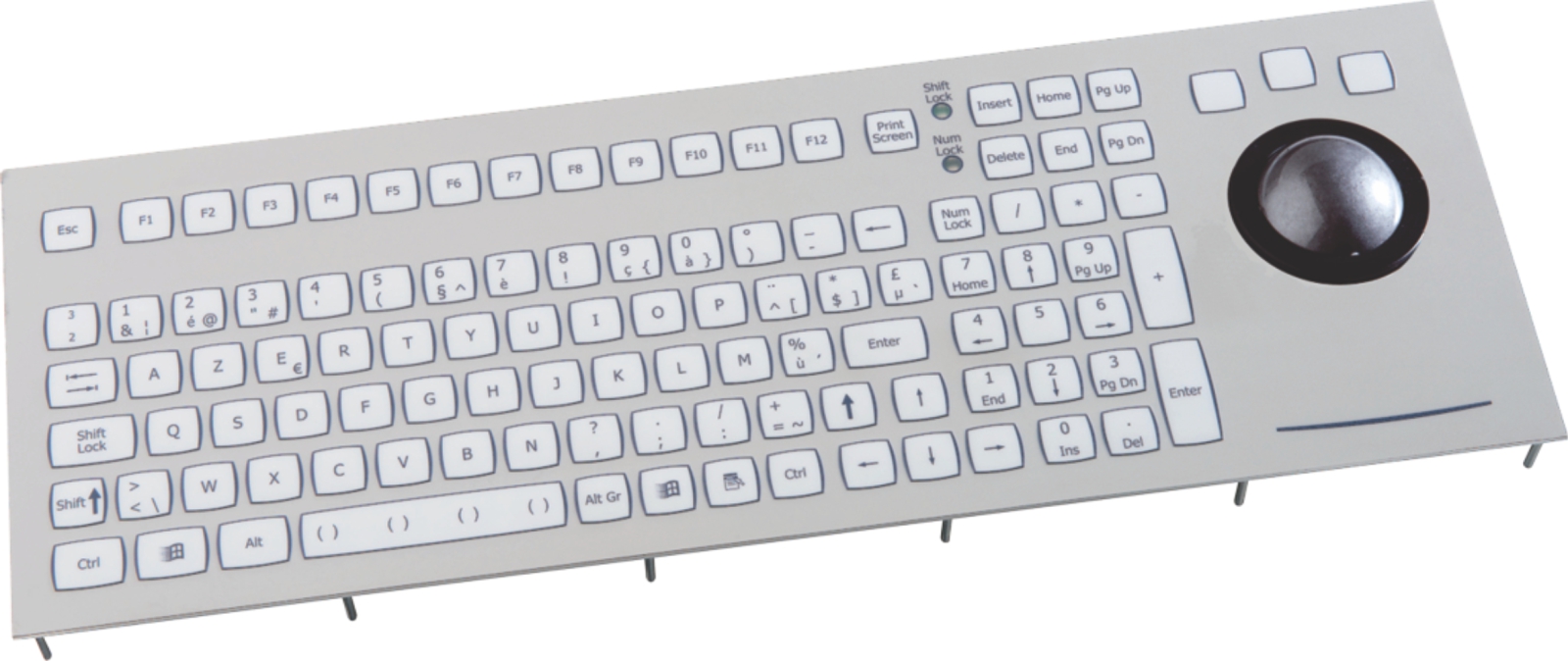

FOOD KEYBOARD WITH TRACKBALL
This “food” keyboard is specifically adapted to the harsh conditions in food processing industry. The combination of cold environment and hot cleaning water/damp creates one of the most challenging environments for electronic HMI devices.
Mô tả
MAIN FEATURES
-
All stainless steel enclosure, sealed to IP65
-

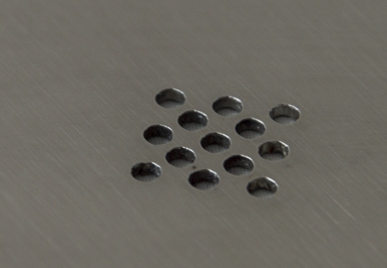

Integration of a waterproof breathable membrane on the backside, creating a dry environment inside the enclosure
-
Design optimized to reduce contamination
-
Integrated 38 mm trackball, IP68 and easily cleanable
-
Short travel switches of 0.3 mm with 2.55 N pressure for faster typing
-
Positive tactile feedback and key embossing
-
Optimized legend colour scheme and contrast
-
User-friendly layout with separate numerical, control, and function keypads
-
Dimensions / Weight: 475 x 200 x 58 mm / 3.1 kg
TYPICAL APPLICATIONS
-
Food industry – automation
-
Breweries
-
Industrial bakeries
-
Vegetable processing plants
-
Meat processing plants
-
Restaurant applications
-
System integrators specialized in this market
-
… and much more
GENERAL TECHNICAL SPECIFICATIONS
-
Sealing: IP65 sealed
-
Keys: 105 short travel keys
-
Pointing Device: 38 mm waterproof laser trackball
-
Operating Temperature: 0°C to +60°C
-

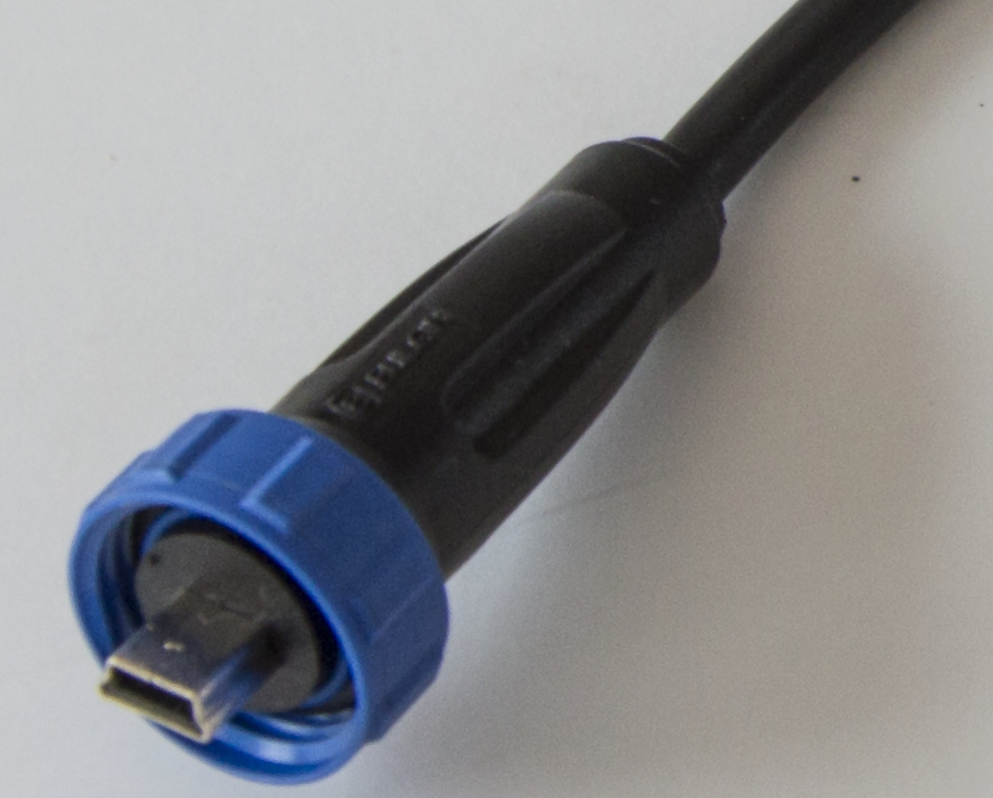

Output: Detachable 2m shielded USB cable, IP68, type A connector
-
Housing: Stainless steel
-
Front Layer: Polyester, chemical resistant
-
Supply Voltage: +5V ±5% (via keyboard port)
-
Supply Current: 200 mA max

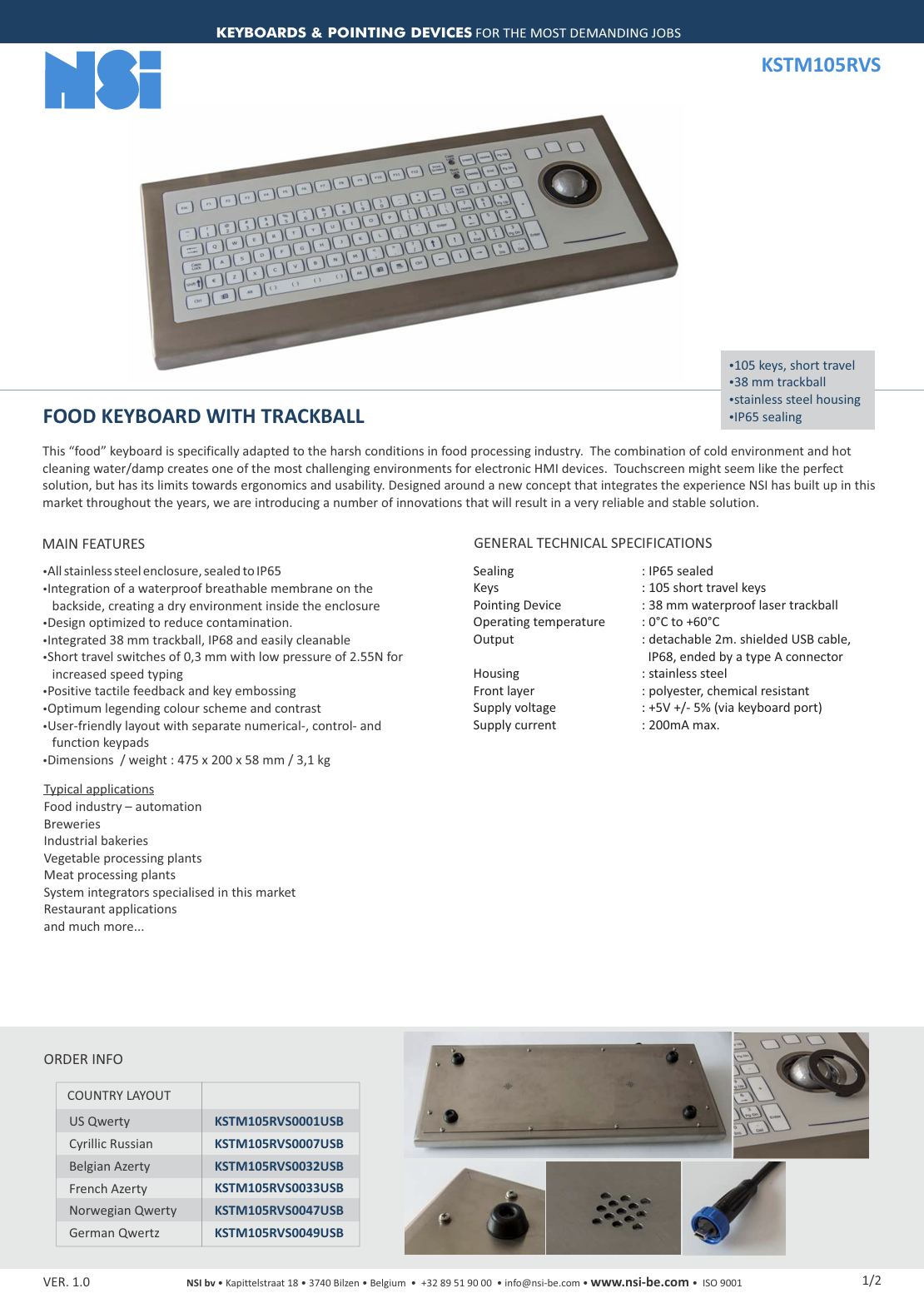

Dưới đây là chi tiết thông số kĩ thuật: kstm105-food-keyboard-trackball
