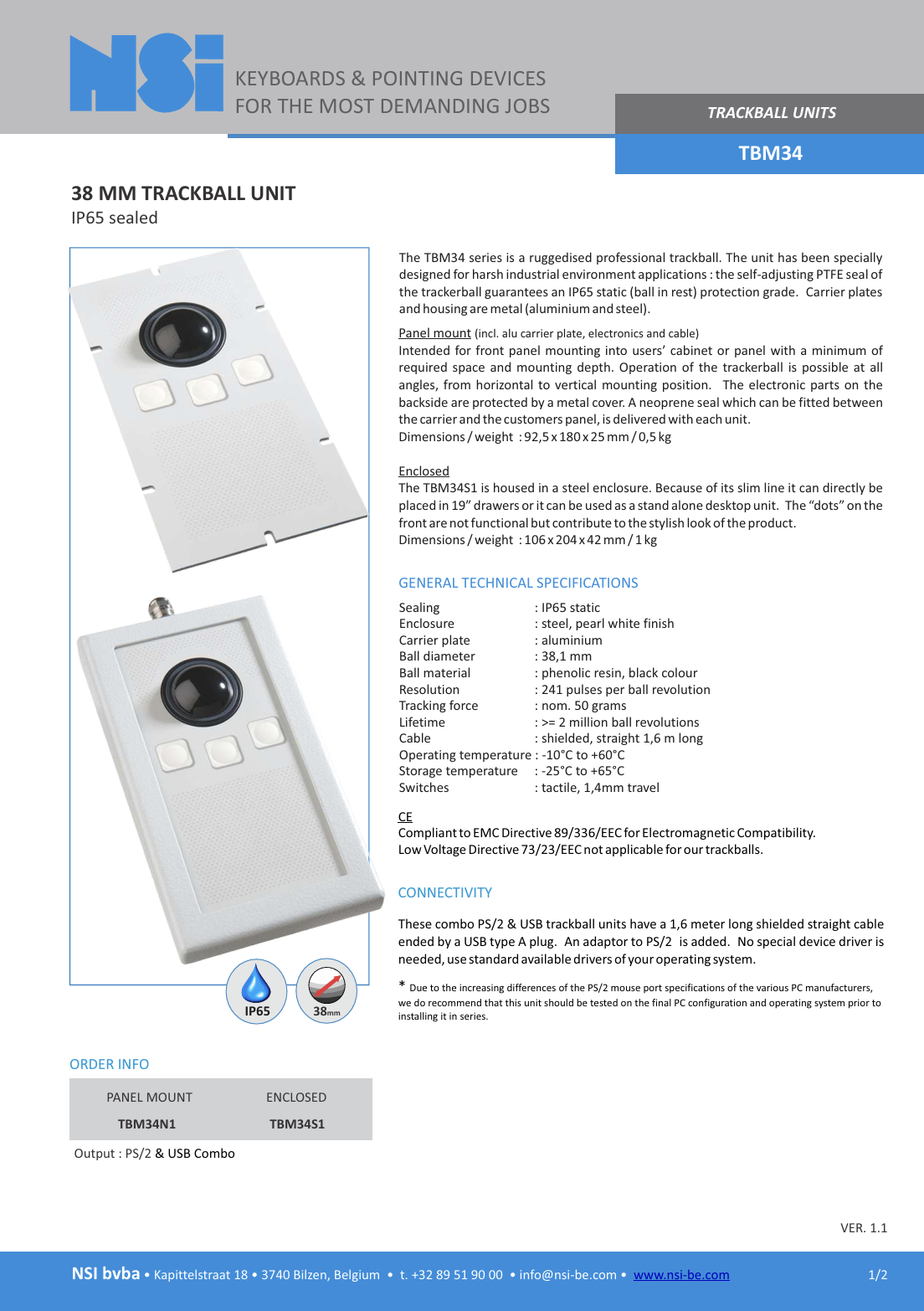

38 MM TRACKBALL UNIT IP65 sealed

The TBM34 series is a ruggedised professional trackball. The unit has been specially
designed for harsh industrial environment applications : the self-adjusting PTFE seal of
the trackerball guarantees an IP65 static (ball in rest) protection grade. Carrier plates
and housing are metal (aluminium and steel).
Panel mount (incl. alu carrier plate, electronics and cable)
Intended for front panel mounting into users’ cabinet or panel with a minimum of
required space and mounting depth. Operation of the trackerball is possible at all
angles, from horizontal to vertical mounting position. The electronic parts on the
backside are protected by a metal cover. A neoprene seal which can be fitted between
the carrier and the customers panel, is delivered with each unit.
Dimensions / weight : 92,5 x 180 x 25 mm / 0,5 kg

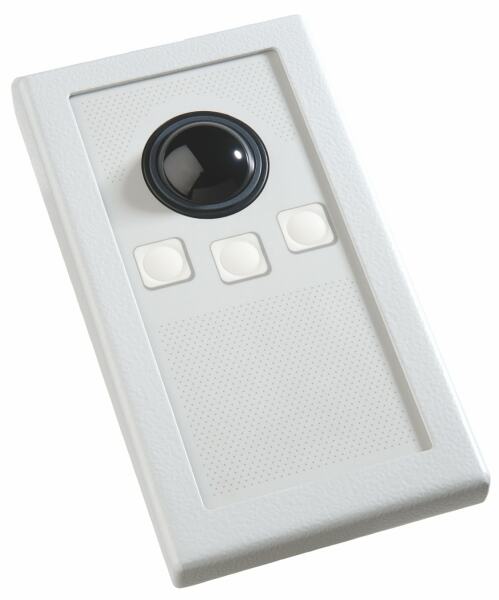

Enclosed
The TBM34S1 is housed in a steel enclosure. Because of its slim line it can directly be
placed in 19” drawers or it can be used as a stand alone desktop unit. The “dots” on the
front are not functional but contribute to the stylish look of the product.
Dimensions / weight : 106 x 204 x 42 mm / 1 kg
